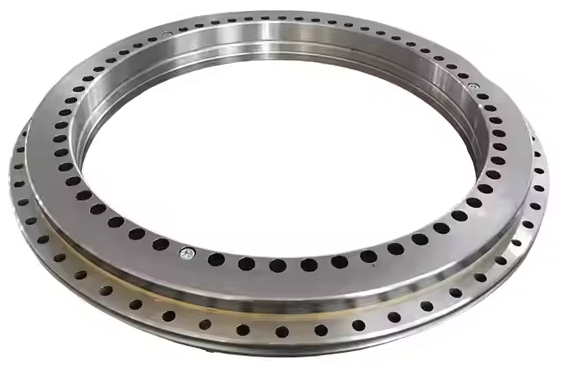

YRT580 High Precision Sealed Turntable Slewing Bearing

YRT580 Turntable bearing comes pre lubricated with grease, is capable of sustaining axial and radial loads, Slewing / Cross-Roller Bearing.

ID

Tolerance

OD

Tolerance

Bearing Height

Tolerance

Height 1

General Tolerance

Tight Tolerance

Height 2

Tight Tolerance

OD inner ring

Height outer ring

Shoulder inner ring

Shoulder outer ring

d(mm)

d(mm)

D(mm)

D(mm)

H(mm)

H(mm)

H1(mm)

H1(mm)

H1(mm)

H2(mm)

H2(mm)

D1(mm)

C(mm)

ds(mm)

Dh(mm)

YRT580

580

0/-0.025

750

0/-0.035

90

±0.5

60

±0.25

±0.075

30

±0.03

700

30

698

702

Mounting holes inner ring		Connection screw	Positional relationship	Mounting holes outer ring		Lifting hole	Positional relationship	Fixing screw	Tightening torque	Axial loading
PCD1(mm)	n1-Ø	n2-M	n1+n2	PCD2(mm)	n3-Ø	n4-M	n3+n4	M	M0(Nm)	Coa(KN)	Ca(KN)
610	46-Ø11.4 x Ø 18↓11	2-M10	48*7.5°	720	42-Ø11.4	6-M12	48*7.5°	M10	68	4450	580

Radial loading		Friction torque	Limit speed	Runout P4	Runout P2	Weight
Cor(KN)	Cr(KN)	M(Nm)	nG(rpm)	Kia, Sia, Kea, Sea(mm)	Kia, Sia, Kea, Sea(mm)	m(Kg)
730	235	140	65	0.01	0.005	89
