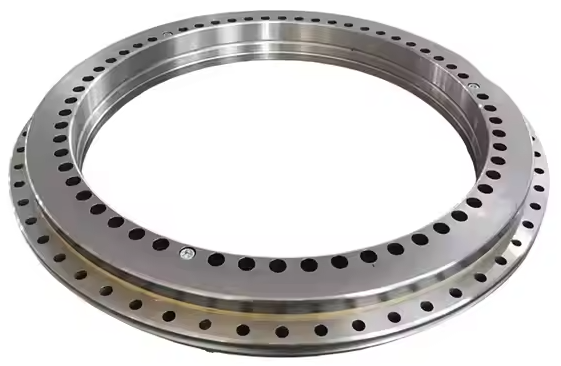

YRT395 High Precision Sealed Turntable Slewing Bearing

YRT395 Turntable bearing comes pre lubricated with grease, is capable of sustaining axial and radial loads, Slewing / Cross-Roller Bearing.

ID

Tolerance

OD

Tolerance

Bearing Height

Tolerance

Height 1

General Tolerance

Tight Tolerance

Height 2

Tight Tolerance

OD inner ring

Height outer ring

Shoulder inner ring

Shoulder outer ring

d(mm)

d(mm)

D(mm)

D(mm)

H(mm)

H(mm)

H1(mm)

H1(mm)

H1(mm)

H2(mm)

H2(mm)

D1(mm)

C(mm)

ds(mm)

Dh(mm)

YRT395

395

0/-0.023

525

0/-0.028

65

±0.4

42.5

±0.2

±0.05

22.5

±0.025

486

20

484

488

Mounting holes inner ring		Connection screw	Positional relationship	Mounting holes outer ring		Lifting hole	Positional relationship	Fixing screw	Tightening torque	Axial loading
PCD1(mm)	n1-Ø	n2-M	n1+n2	PCD2(mm)	n3-Ø	n4-M	n3+n4	M	M0(Nm)	Coa(KN)	Ca(KN)
415	46-Ø9.3 x Ø 15↓8.2	2-M8	48*7.5°	505	45-Ø9.3	3-M12	48*7.5°	M8	34	2190	265

Radial loading		Friction torque	Limit speed	Runout P4	Runout P2	Weight
Cor(KN)	Cr(KN)	M(Nm)	nG(rpm)	Kia, Sia, Kea, Sea(mm)	Kia, Sia, Kea, Sea(mm)	m(Kg)
640	200	55	160	0.006	0.003	32.5
