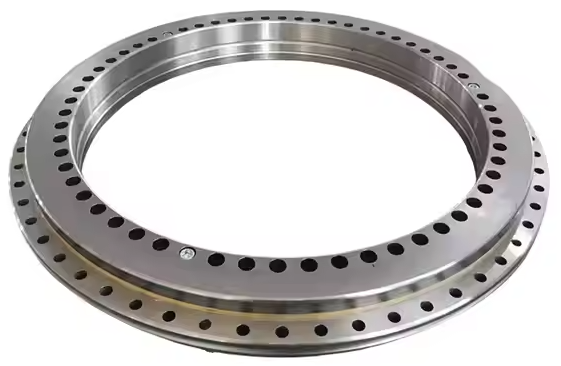

YRT150 High Precision Sealed Turntable Slewing Bearing
YRT150 High Precision Sealed Turntable Slewing Bearing
Regular price
$477.62 USD
Regular price
Sale price
$477.62 USD
Unit price
per
Couldn't load pickup availability
YRT150 Turntable bearing comes pre lubricated with grease, is capable of sustaining axial and radial loads, Slewing / Cross-Roller Bearing.
|
ID |
Tolerance |
OD |
Tolerance |
Bearing Height |
Tolerance |
Height 1 |
General Tolerance |
Tight Tolerance |
Height 2 |
Tight Tolerance |
OD inner ring |
Height outer ring |
Shoulder inner ring |
Shoulder outer ring |
|
|
d(mm) |
d(mm) |
D(mm) |
D(mm) |
H(mm) |
H(mm) |
H1(mm) |
H1(mm) |
H1(mm) |
H2(mm) |
H2(mm) |
D1(mm) |
C(mm) |
ds(mm) |
Dh(mm) |
|
|
YRT150 |
150 |
0/-0.013 |
240 |
0/-0.015 |
40 |
±0.35 |
26 |
±0.175 |
±0.030 |
14 |
±0.02 |
214 |
12 |
212 |
216 |
|
Mounting holes inner ring |
Connection screw |
Positional relationship |
Mounting holes outer ring |
Lifting hole |
Positional relationship |
Fixing screw |
Tightening torque |
Axial loading |
|||
|
PCD1(mm) |
n1-Ø |
n2-M |
n1+n2 |
PCD2(mm) |
n3-Ø |
n4-M |
n3+n4 |
M |
M0(Nm) |
Coa(KN) |
Ca(KN) |
|
165 |
34-Ø7 x Ø11↓6.2 |
2-M6 |
36*10° |
225 |
33-Ø7 |
3-M8 |
36*10° |
M6 |
14 |
650 |
128 |
|
Radial loading |
Friction torque |
Limit speed |
Runout P4 |
Runout P2 |
Weight |
|
|
Cor(KN) |
Cr(KN) |
M(Nm) |
nG(rpm) |
Kia, Sia, Kea, Sea(mm) |
Kia, Sia, Kea, Sea(mm) |
m(Kg) |
|
146 |
74 |
10 |
640 |
0.003 |
0.0015 |
5.4 |
