VXB

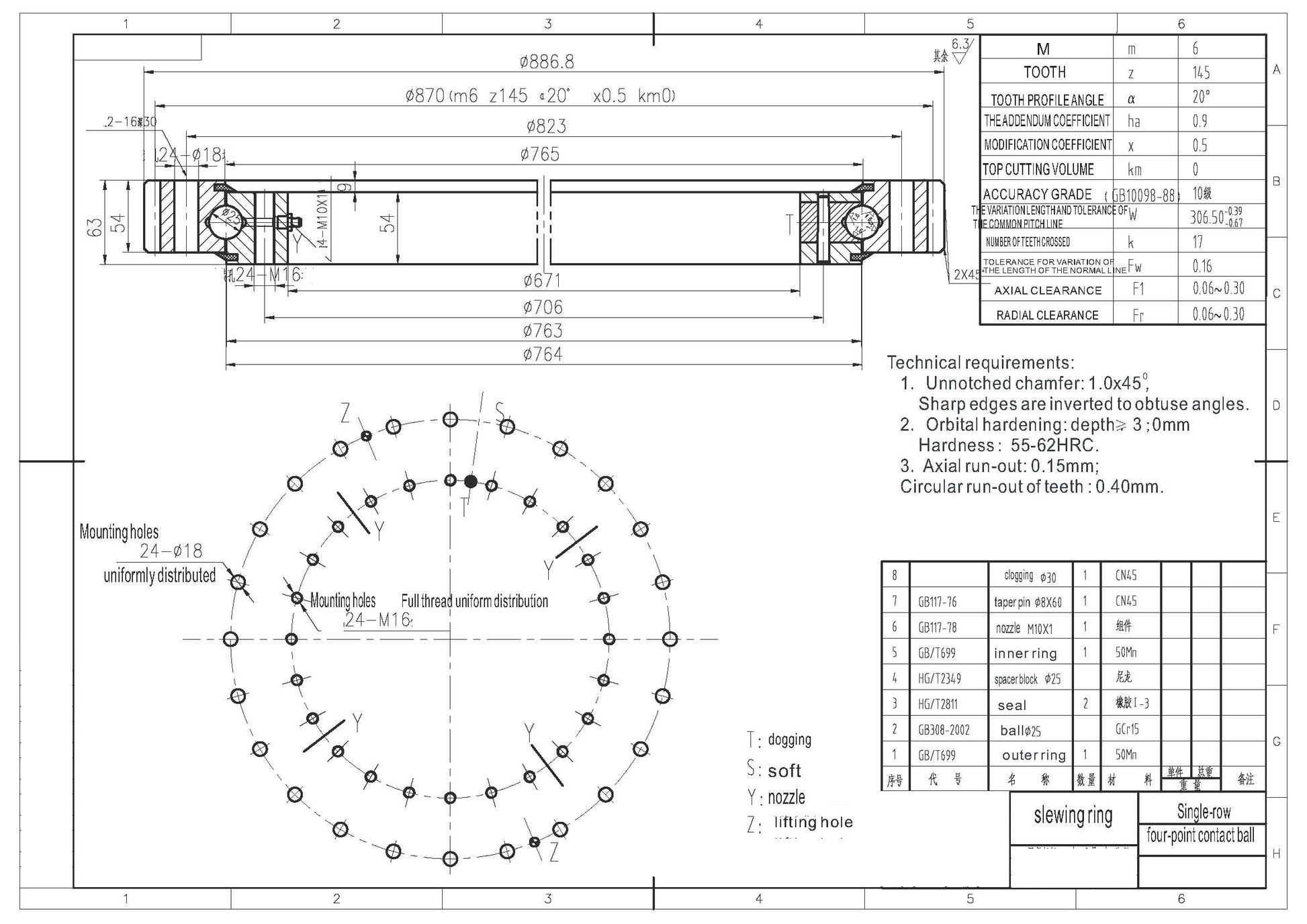

26 Inch Four-Point Contact 671x886.8x63 mm Ball Slewing Ring Bearing with Outside Gear
26 Inch Four-Point Contact 671x886.8x63 mm Ball Slewing Ring Bearing with Outside Gear
Regular price
$1,621.95 USD
Regular price
Sale price
$1,621.95 USD
Unit price
/
per
Couldn't load pickup availability
Four-Point Contact Ball Slewing Bearing with Outside Gear |
A slewing bearing ring is a rotational rolling-element bearing that typically supports a heavy but slow-turning or slow-oscillating load, often a horizontal platform such as a conventional crane, or the wind-facing platform of a horizontal-axis windmill. (To 'slew' means to turn without change of place.) |
Outside Dimensions(mm) | Shoulder Dimensions(mm) | Physical Dimensions(mm) | Gear Parameter | Gear Peripheral force | |||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Dp | De | D | d | T | D0 | d0 |
n |
C |
M |
n1 |
d1 | D1 | B | S | b | m |
z |
x |
ha |
Normalizing (KN) | Slack Quench (KN) |
W01125764401 | 886.8 | 886.8 | 671 | 63 | 823 | 706 | 24 | 18 | 16 | 4 | 765 | 763 | 54 | 9 | 54 | 6 | 145 | 0.5 | 0.9 | 41 | 63 |
